Holly Street ADU
Creating an Urban ADU that doesn’t look like an ADU.
This is what “how it gets there” looks like — the sketch, the structural problem-solving, the moment a plan changes because the site asked a better question than the brief did. Shown here in order, start to finish.
PRELIMINARY DESIGN → DESIGN DEVELOPMENT → CONSTRUCTION → COMPLETED
PRELIMINARY DESIGN

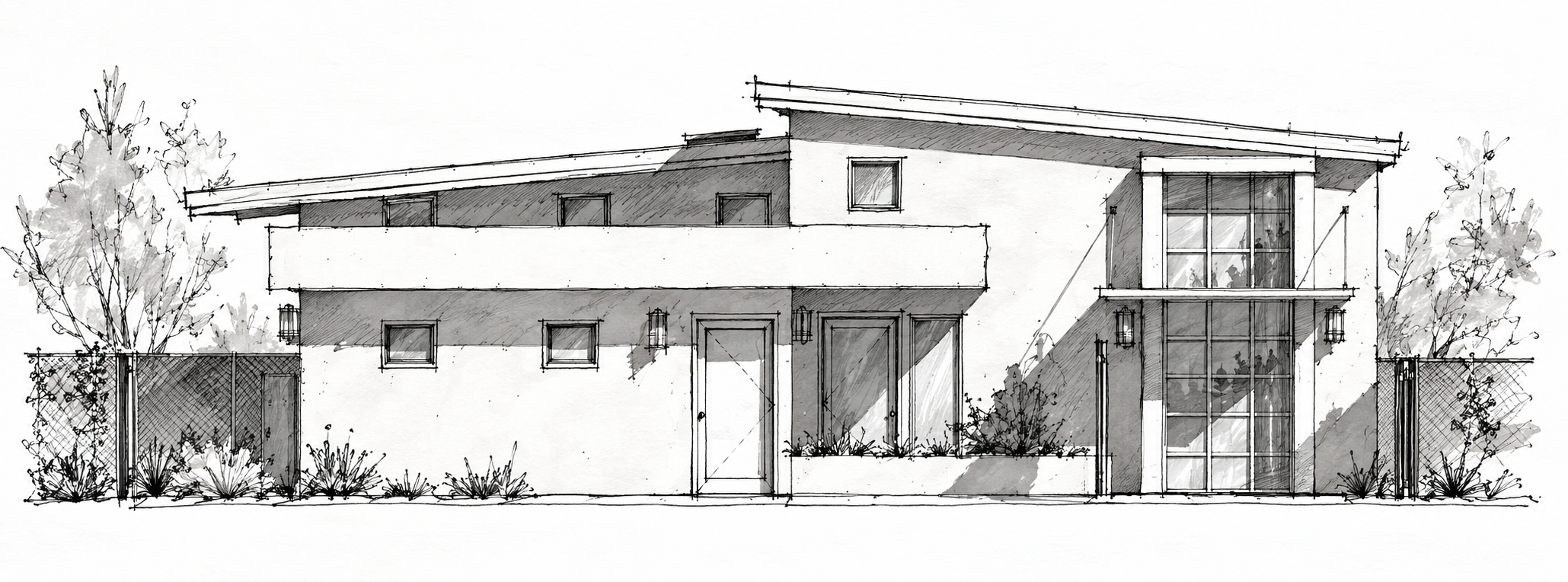

Front Elevation
Elevation maximum height study.
Front Elevation Study
Using the existing workshop envelope to minimize additional square footage.

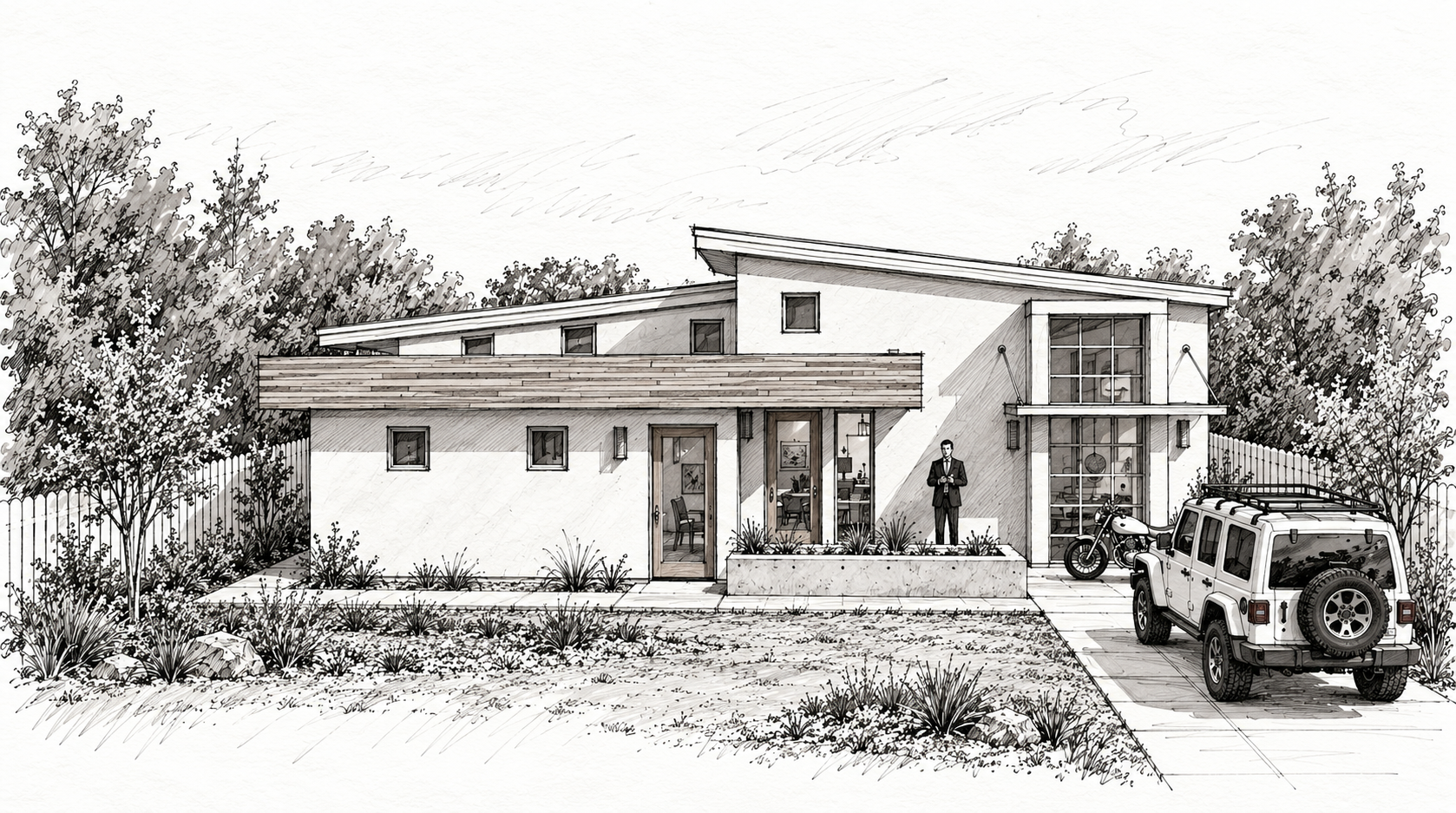

Full Study
Vertically and horizontally layer the mass as to not encroach on the main residence.
DESIGN DEVELOPMENT

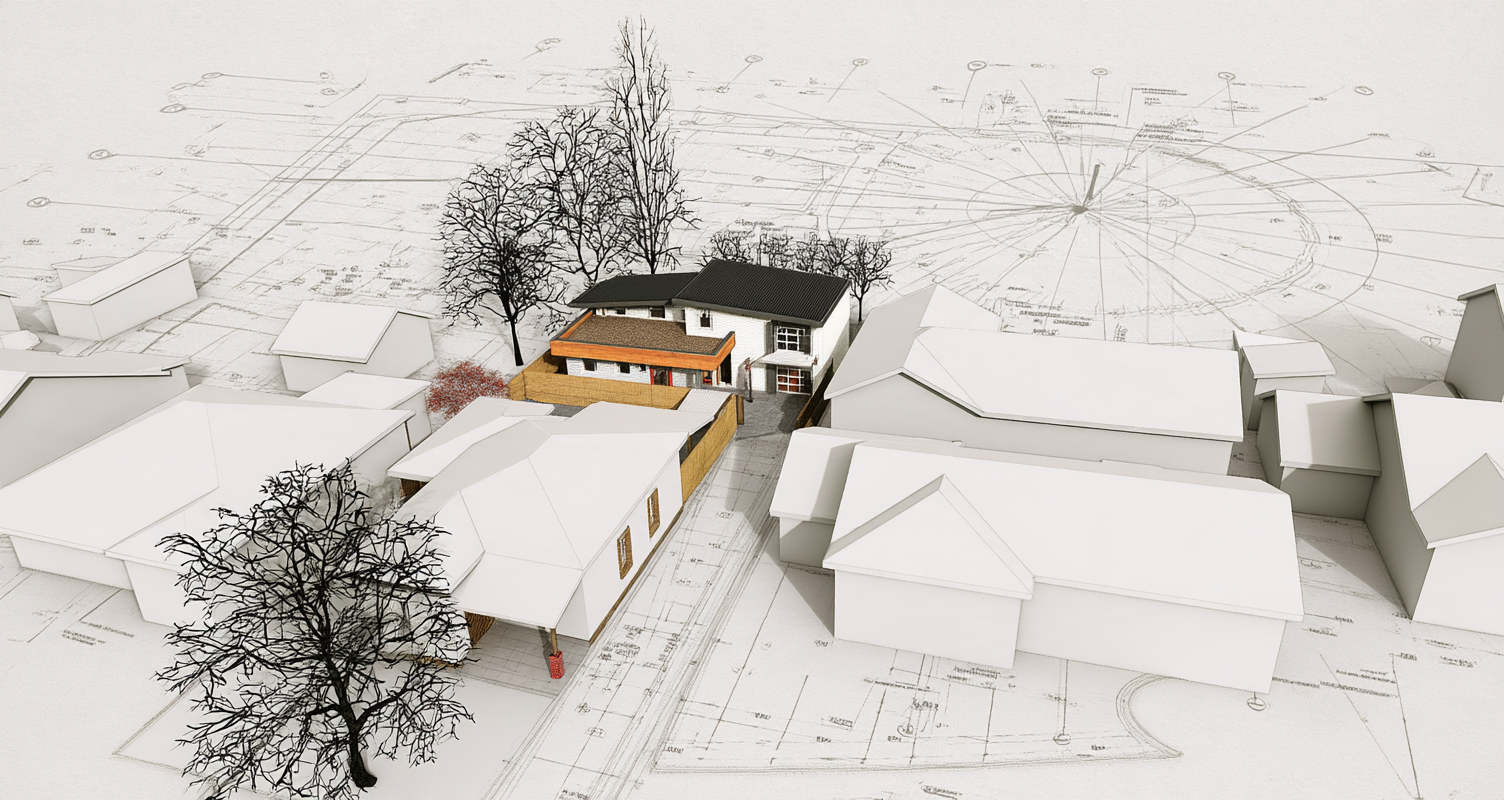

Aerial Perspective
Exploring the vertical use of area in such a small footprint

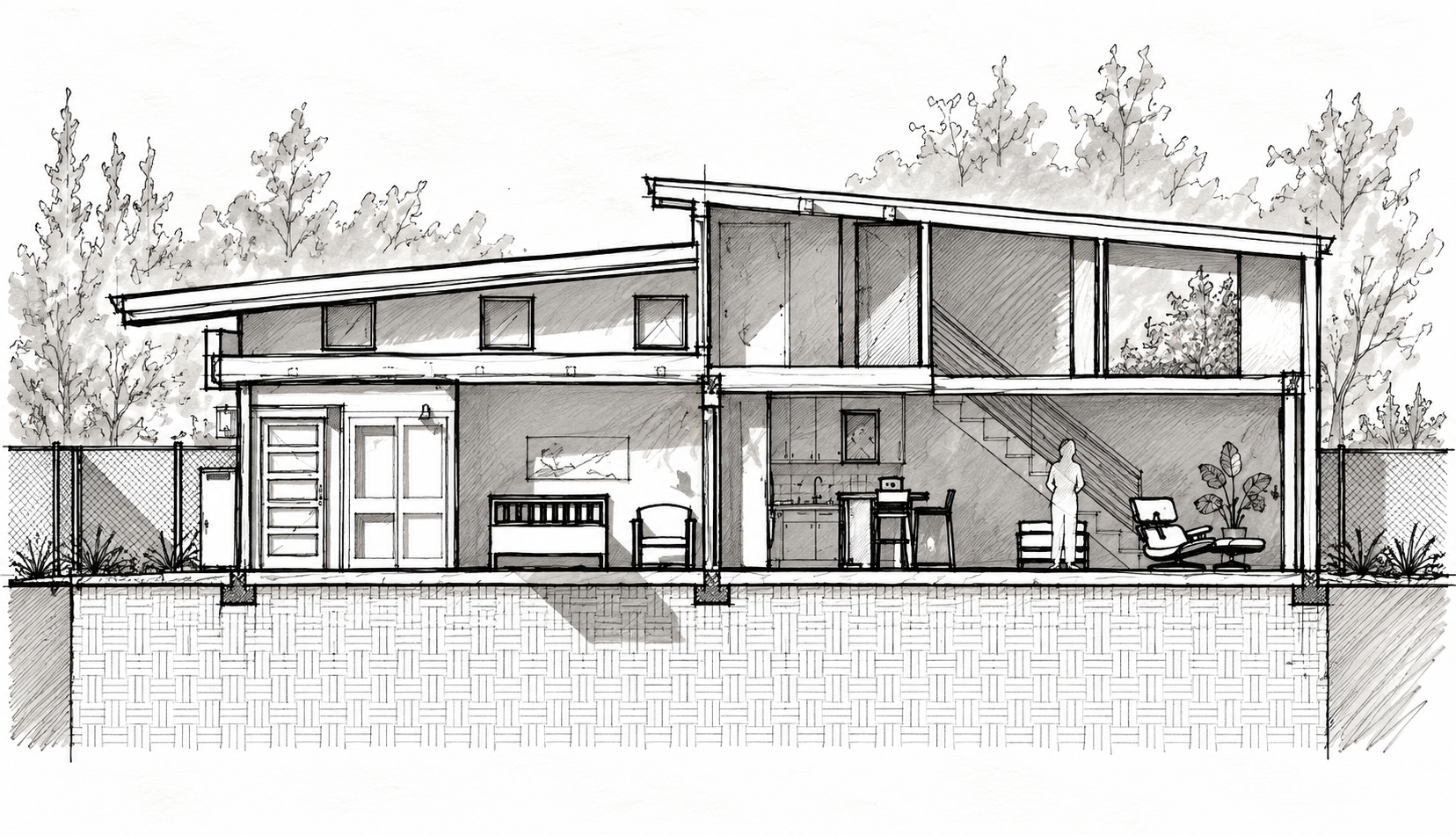

Vertical Section
Connection to the primary residence

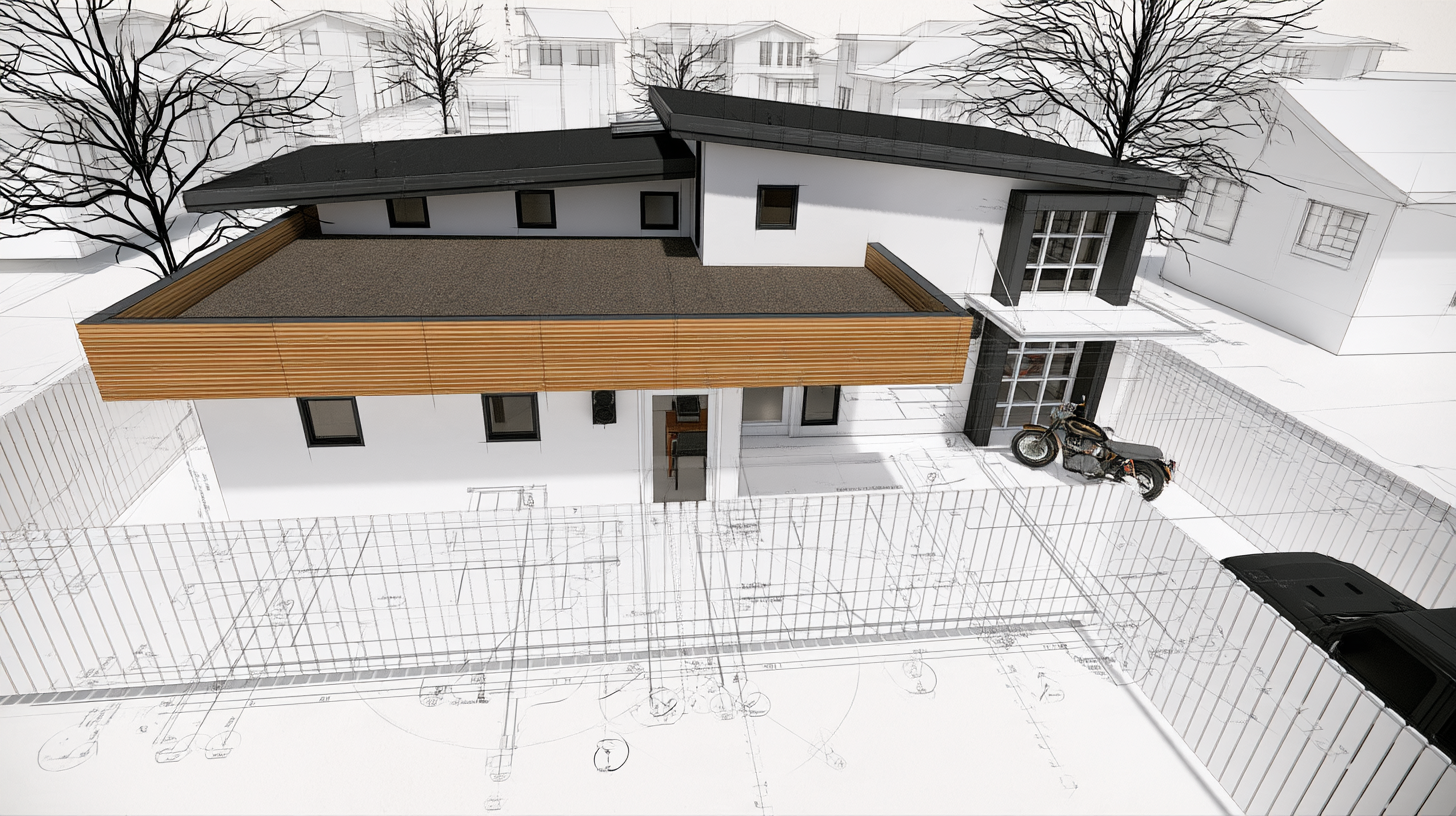

Neighbor study one
Proximity study

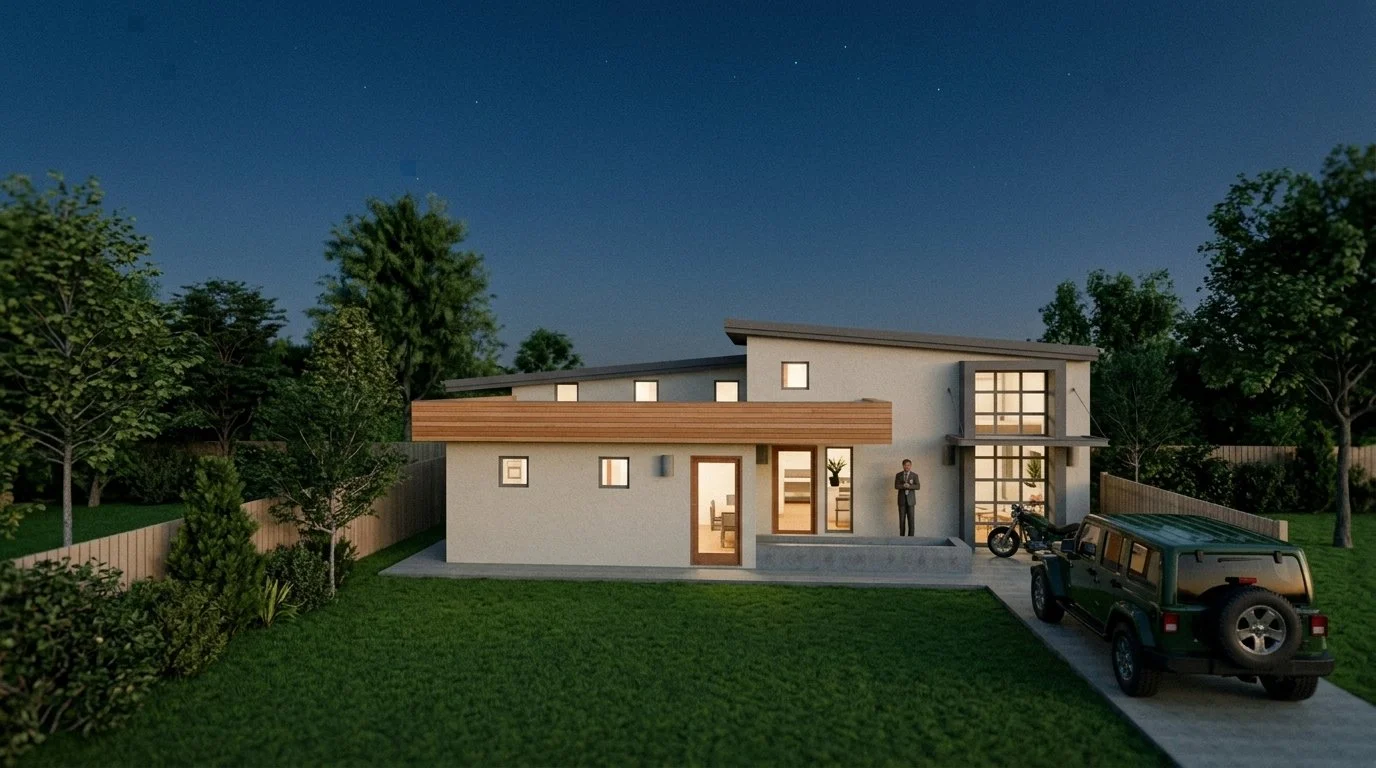

Material Study
Minimize night lighting to not intrude on main residence.
Neighbor study two
Proximity study
